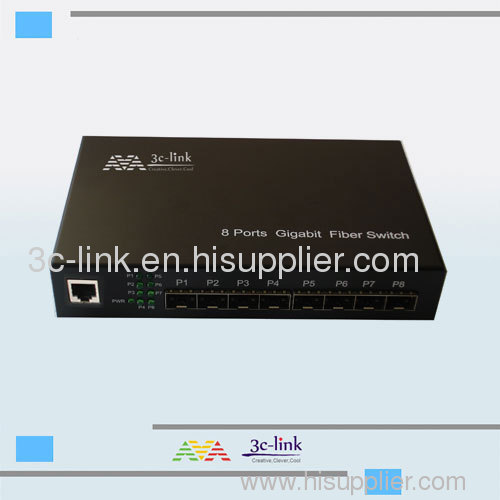

8/9 ports Gigabit Ethernet Optical Fiber Switch with eight SFP ports

3C-MC--SFP08 8 ports Gigabit Ethernet Optical Fiber Switch has eight 1000M SFP sockets. 3C-MC-SFP09 9 ports Gigabit Ethernet Optical Fiber Switch has eight 1000M SFP sockets and one 10/100/1000M UTP ports. Customer can choose different 1000M SFP module according as his demand, such as Multimode or Singlemode, Single fiber or Dual fiber and Singlemode 20-100km etc. The product is possessed of stable performance, excellent quality and reasonable price with adopting latest IC from USA. It is applicable to use in constructing of Optical Fiber Ethernet network.





  Main Features



*  8 SFP sockets with 1 RJ45 interface optional.

*  Auto negotiation function supports UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.

*  The SFP slot supports 1000M and Full Duplex mode.

*  Supports flow control and broadcast storm protection.

*  Supports the max 1632 bytes frame.

*  It is low power consume (10W), low heat, and good reliability.



    Specifications

*   Operating standards, IEEE802.3/u/z/ab,10Base-T, 100Base-T, 1000Base-T and 1000Base-X.

*  MAC address table, 8K

*   Frame buffer memory,1MKb
*   Switching capacity,20G

      Connector UTP, RJ-45,10/100/1000Mbps

      SFP slot, 1000Mbps

 *   Cable UTP, Cat.5 or 6 UTP(the max distance up to 100m)

      Multimode Fiber,50/125,62.5/125μm(the max distance up to 224/550m)

      Singlemode Fiber,8/125,8.7/125,9/125μm(the max distance up to 10~100 km)

 *  Flow control, Full Duplex,IEEE802.3x flow control

     Half Duplex, back pressure flow control

*  LED PWR,SFP1 Link/Act, SFP2 Link/Act, SFP3 Link/Act, SFP4 Link/Act, SFP5 Link/Act, SFP6 Link/Act, SFP7    Link/Act, SFP8 Link/Act, TP Lin/Act, TP FDX.

 *  Power Requirement,AC220V(100-240V),50~60Hz  DC, 5V,3A

 *   Ambient Temperature,0 ~ +50°C

 *   Storage Temperature, -20 ~ +70°C

 *   Humidity, 5% ~ 90%

 *   Dimensions,37(high)×130(width)×110(length)mm
